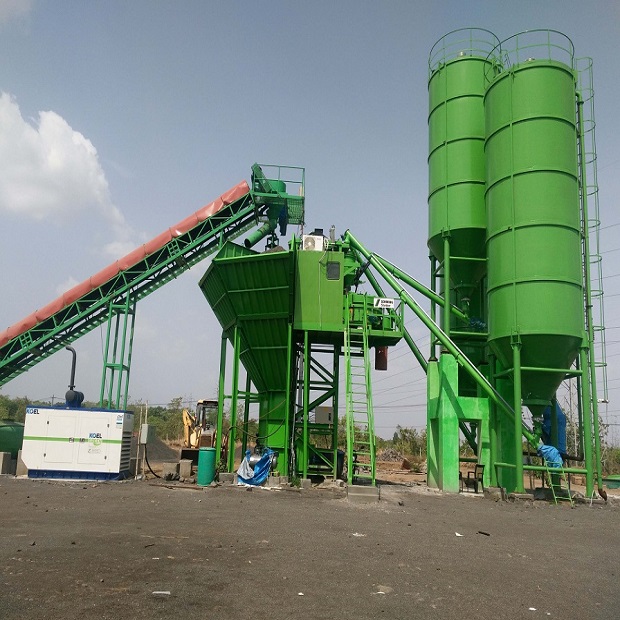

Stationary Concrete Batching Plant
Sahajanand Sales & Service concrete plant is very easy to install and uninstall at site. Fully assembled and well-structured welded plant is in different parts. Plant can be installed in few Hours with ordinary Hydra and with Labors.
Technical Specification
| Sr. No | Details | KCP 30 | KCP 45 | KCP 60 | KCP 90 | KCP 120 |
|---|---|---|---|---|---|---|
| 1 | OUTPUT CPACITY (PER HOUR) | 30 cm/hr | 45 cm/hr | 60 cm/hr | 90 cm/hr | 120 cm/hr |
| 2 | CHARGING CONVEYOR | NA | Chevron Belt Conveyor | Chevron Belt Conveyor | Chevron Belt Conveyor | Chevron Belt Conveyor |
| 3 | INLINE BIN | 3 | 4 | 5 | 5 | 6 |
| 4 | MIXER | Twin shaft/ Pan | Twin shaft/ Pan | Twin shaft/ Pan | Twin Shaft | Twin Shaft |
| 5 | CEMENT / FILLER WEIGHING SYSTEM | Yes | Yes | Yes | Yes | Yes |
| 6 | WATER WEIGHING SYSTEM | Yes | Yes | Yes | Yes | Yes |
| 7 | ADMIXTURE WEIGHING SYSTEM | Yes | Yes | Yes | Yes | Yes |
| 8 | WATER SPRINLKLING AND GRAVITY DISCHARGE | Gravity Discharge | Gravity discharge | Gravity Discharge | Both | Both |
| 9 | AIR COMPRESSOR | Yes | Yes | Yes | Yes | Yes |
| 10 | CEMENT SCREW CONVEYOR | Yes | Yes | Yes | Yes | Yes |
| 11 | CEMENT FILLING HOPPER | YES | Optional | Optional | Optional | Optional |
| 12 | CONTROL SYSTEM - SCADA | Automatic | Automatic | Automatic | Automatic | Automatic |
| 13 | PRODUCTION REPORT PRINTING | Yes | Yes | Yes | Yes | Yes |
| 14 | DISCHARGE HEIGHT | 4.2 M | 4.2 M | 4.2 M | 4.2 M | 4.2 M |
| 15 | GREASING SYSTEM | AUTOMATIC | Automatic | Automatic | Automatic | Automatic |
| 16 | TOTAL POWER | 70 HP | 105 HP | 120 HP | 170 HP | 240 HP |
KCP 30 – Stationary Concrete Plant
Minimum space require for installation & 3 side RMC loading possibility
| Capacity | Mixer | Discharge Height | Control System With PLC | Control Panel |
|---|---|---|---|---|
| 30 m3 / hr to 120 m3 hr | Sicoma MX - Twin Shaft | 4.2 m | Siemens | Rital Make |
KCP 60 – Stationary Concrete Plant
| Capacity | Mixer | Discharge Height | Control System With PLC | Control Panel |
|---|---|---|---|---|
| 30 m3 / hr to 120 m3 hr | Sicoma MX - Twin Shaft | 4.2 m | Siemens | Rital Make |
